Compact gaseous ozone systems
GTS Series Ozone Generators
The GTS Series delivers high-output gaseous ozone in a compact, air-cooled package, supporting multi-zone and remote distribution where centralized ozone generation and flexible delivery are required.
Compact Configurations
Multi-Zone Distribution
External Oxygen Feed
Ambient Ozone Monitoring
Chemical-Free Sanitation, Pathogen Elimination, and Compliance Assurance
Engineered for Industrial and Custom Ozone Solutions
Our ozone generator series excel in industrial ozone generation, municipal water treatment, and air purification systems, adapting seamlessly to custom configurations that demand scalable, high-efficiency ozone output for diverse applications.
Configurations and System Capabilities
High-output ozone with external oxygen feed
Available in GTS-60 through GTS-280 models, all system configurations feature closed-loop PID control, Teledyne ozone process control, external oxygen feed, air-cooled operation, follow UL 508A-listed equipment standards, and support for local and remote gaseous ozone zones.

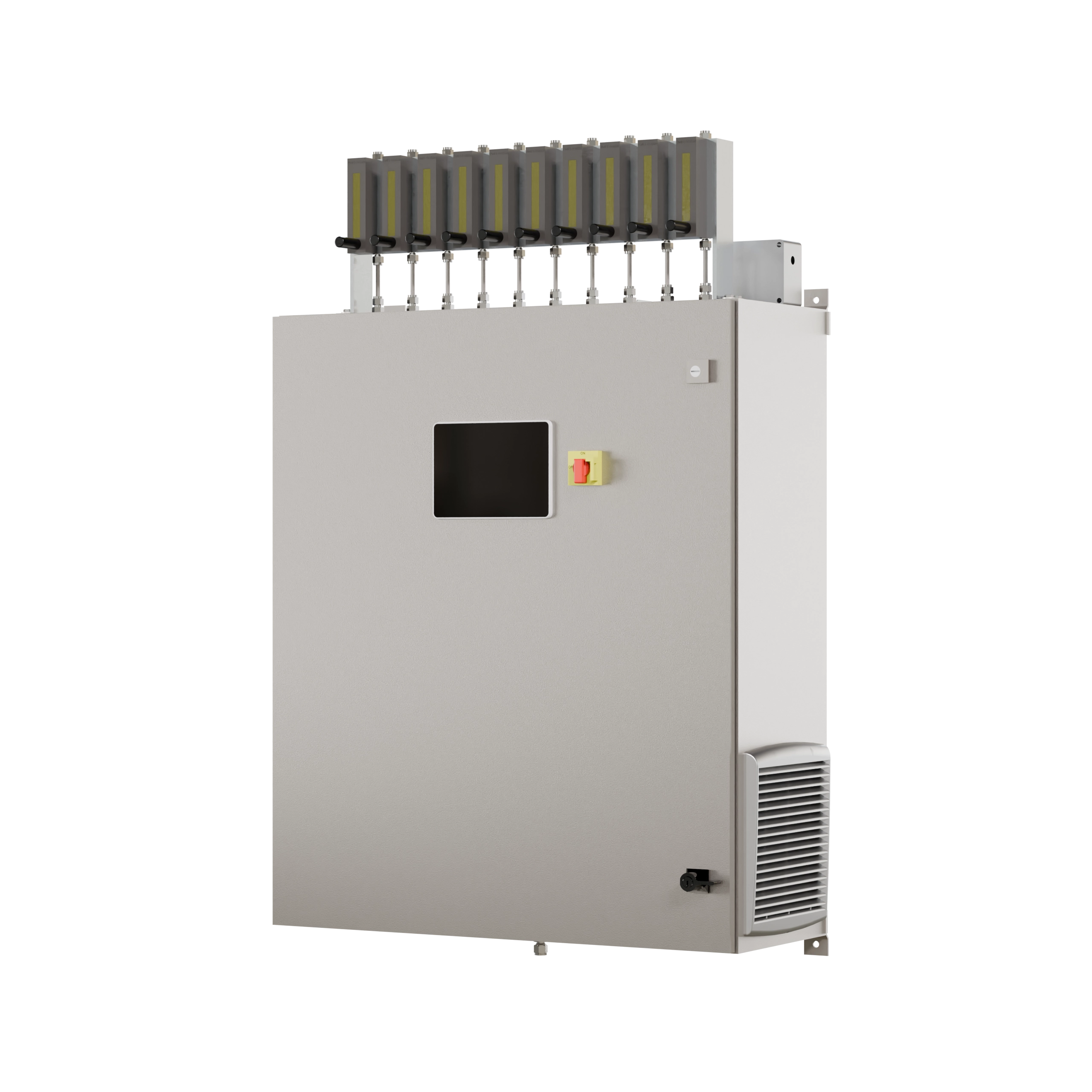

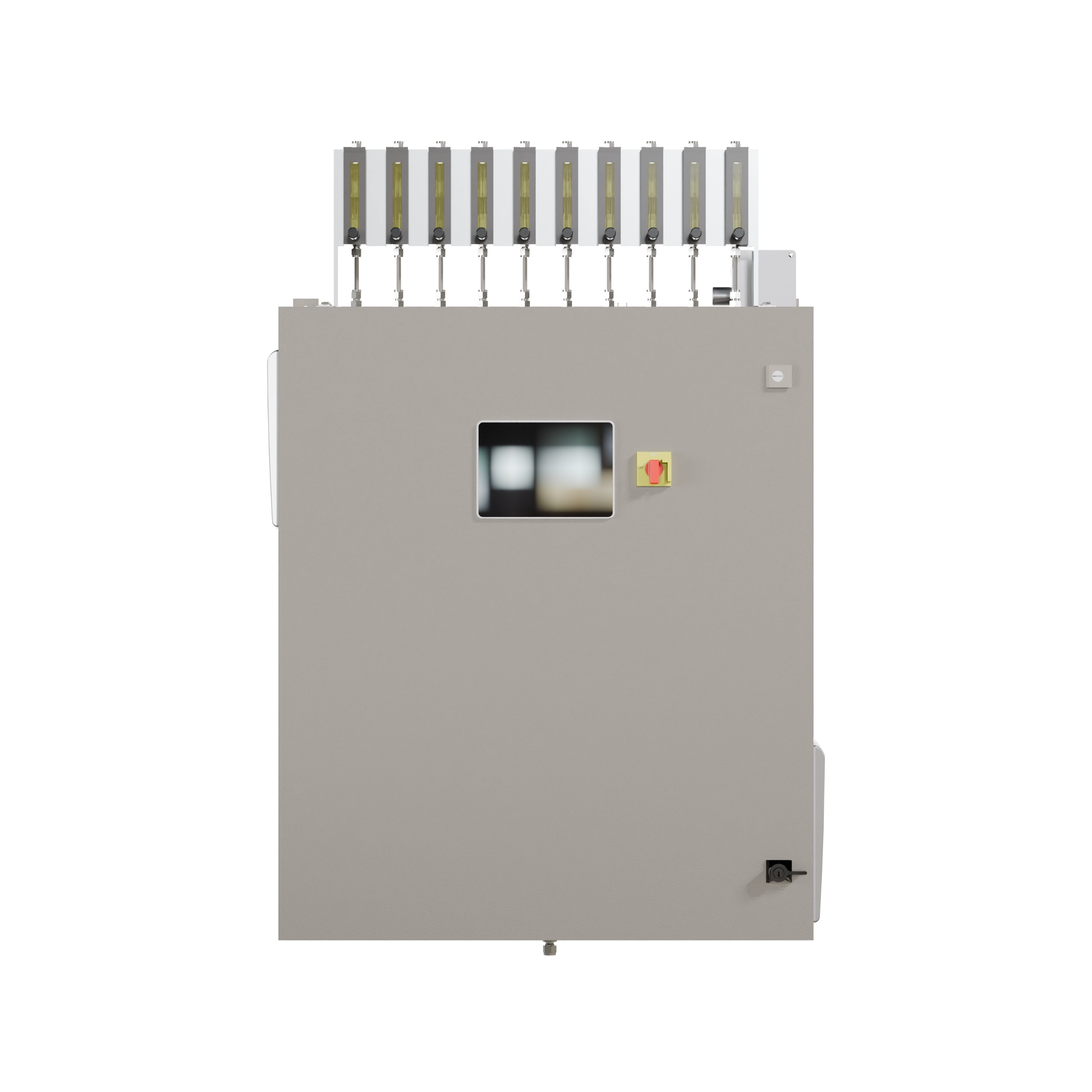

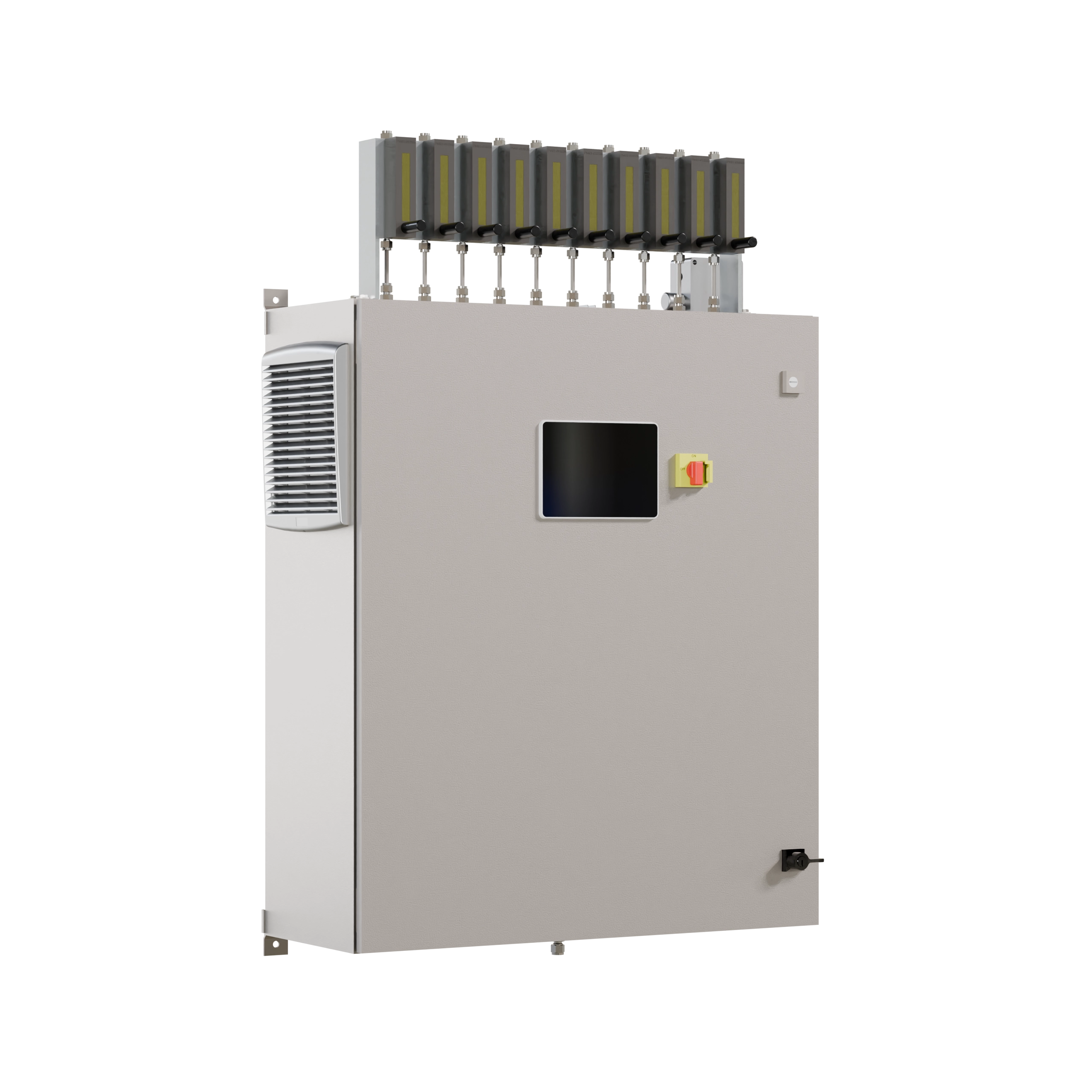

Physical Properties
Ozone Output
60 g/hr, Air Cooled
Dimensions (WxHxD)
32" x 46" x 14"
Weight
~200 lbs
Connections
Oxygen Feed
3/8" Tube
1, 5, or 10 LPM Gaseous Zones
1/4" Tube, 0-2 LPM Flowmeter per Zone

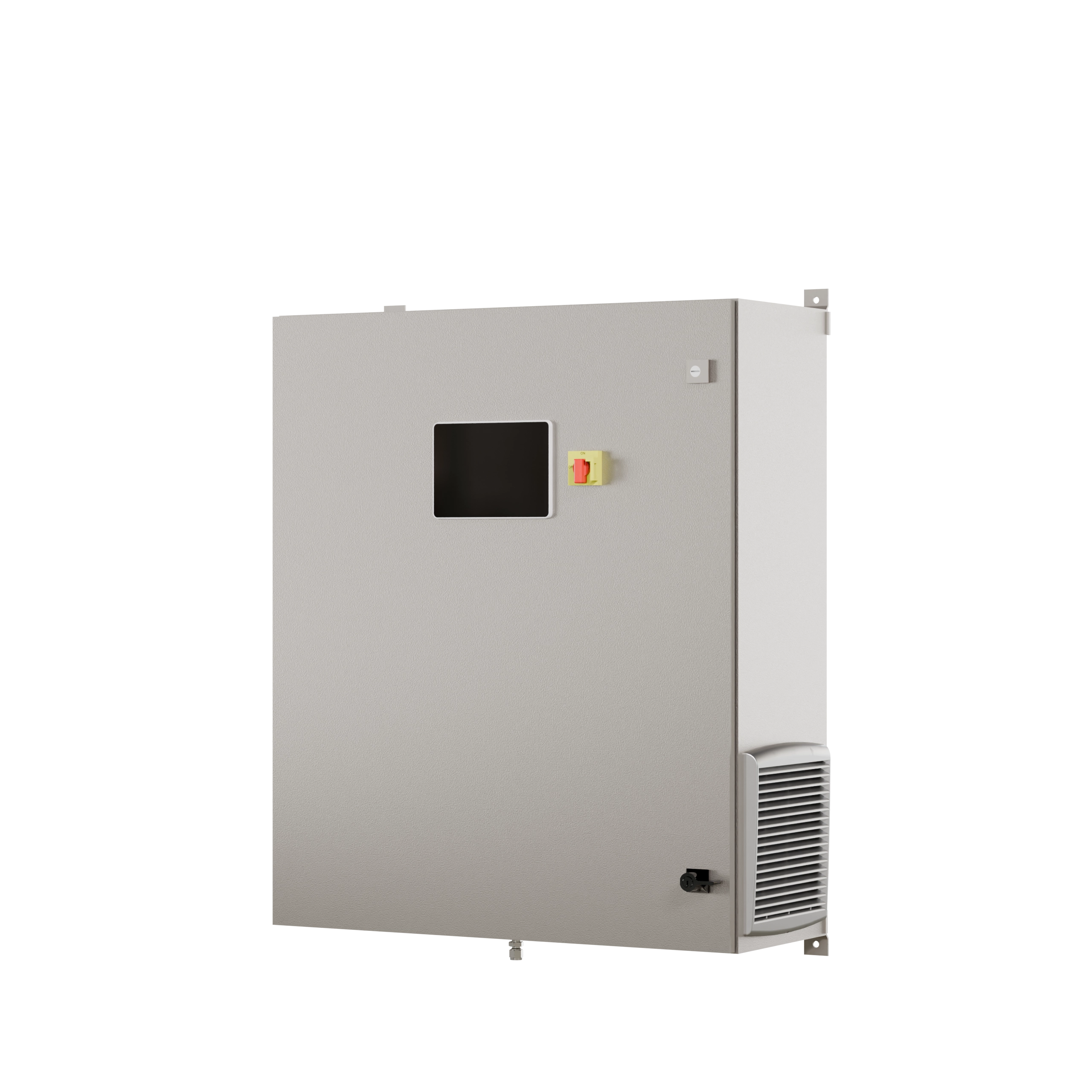

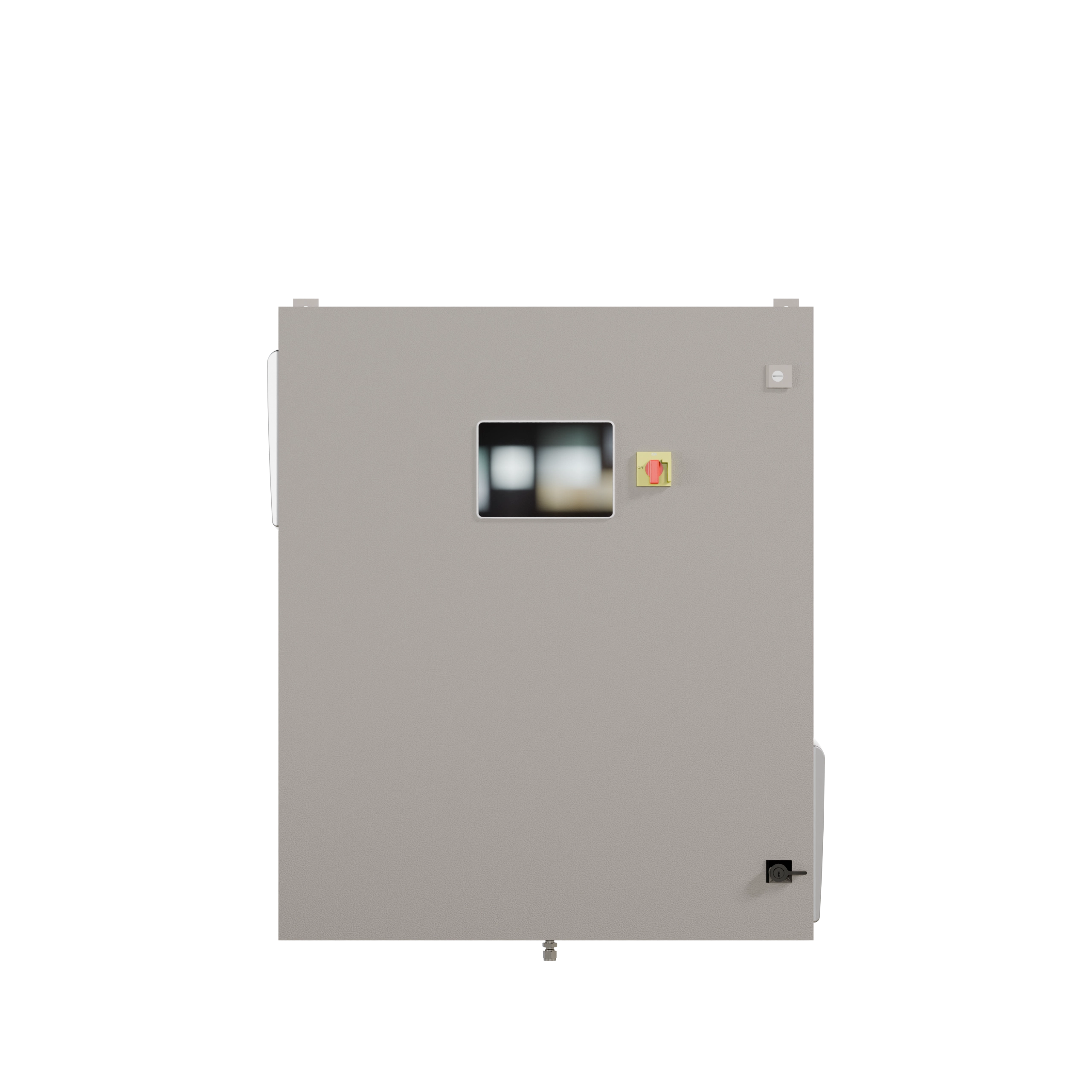

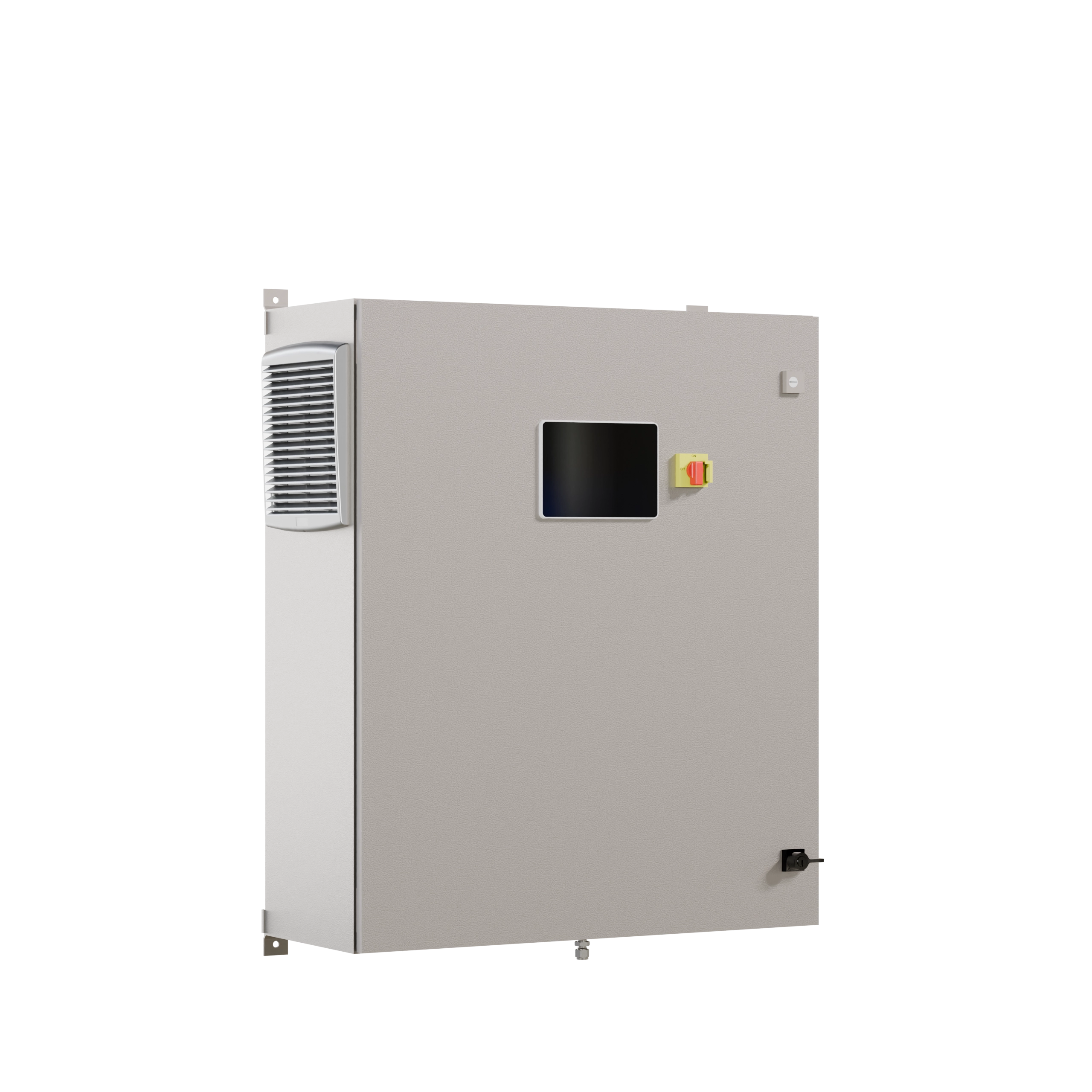

Physical Properties
Ozone Output
70 g/hr, Air Cooled
Dimensions (WxHxD)
32" x 46" x 14"
Weight
~210 lbs
Connections
Oxygen Feed
3/8" Tube
1, 5, or 10 LPM Gaseous Zones
1/4" Tube, 0-2 LPM Flowmeter per Zone

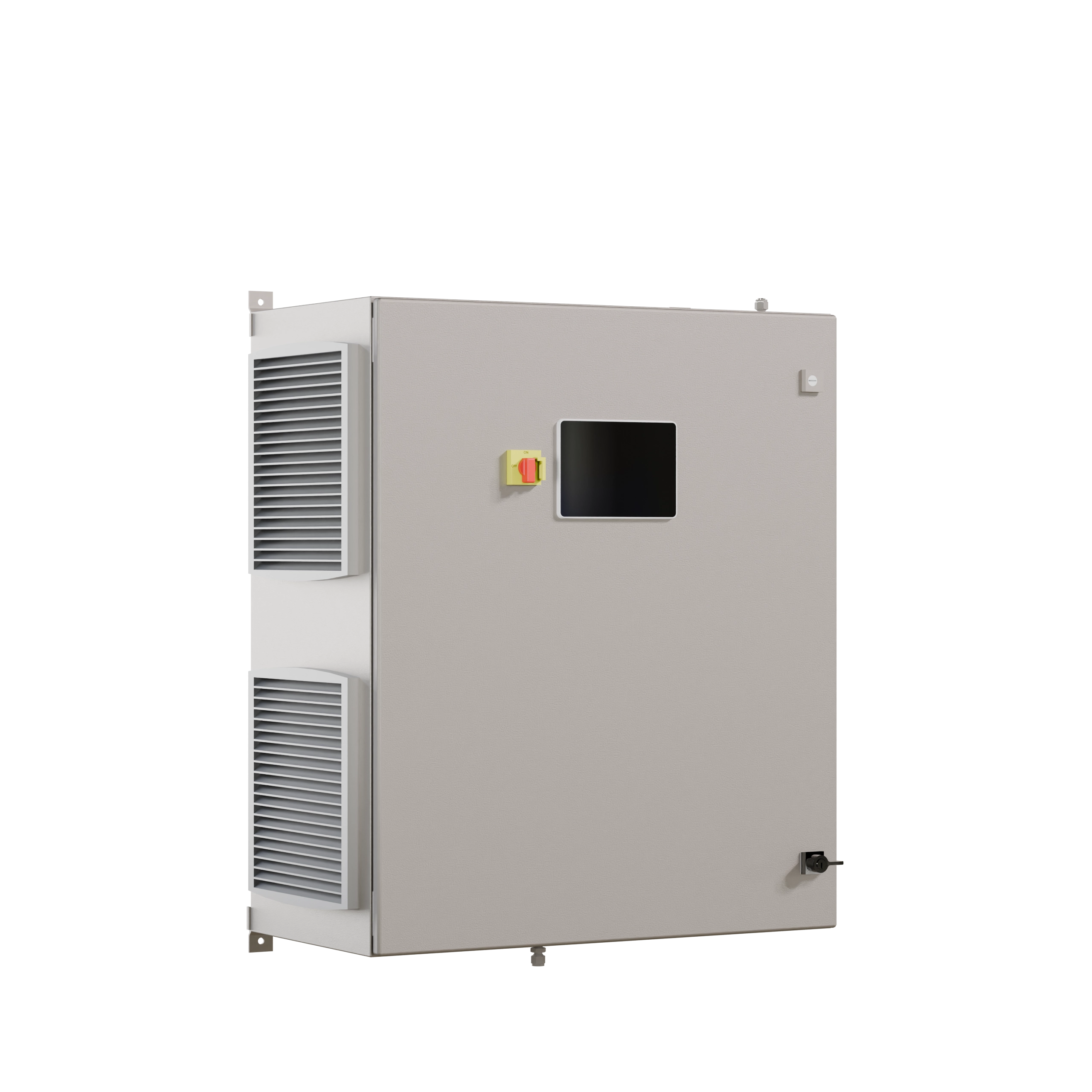

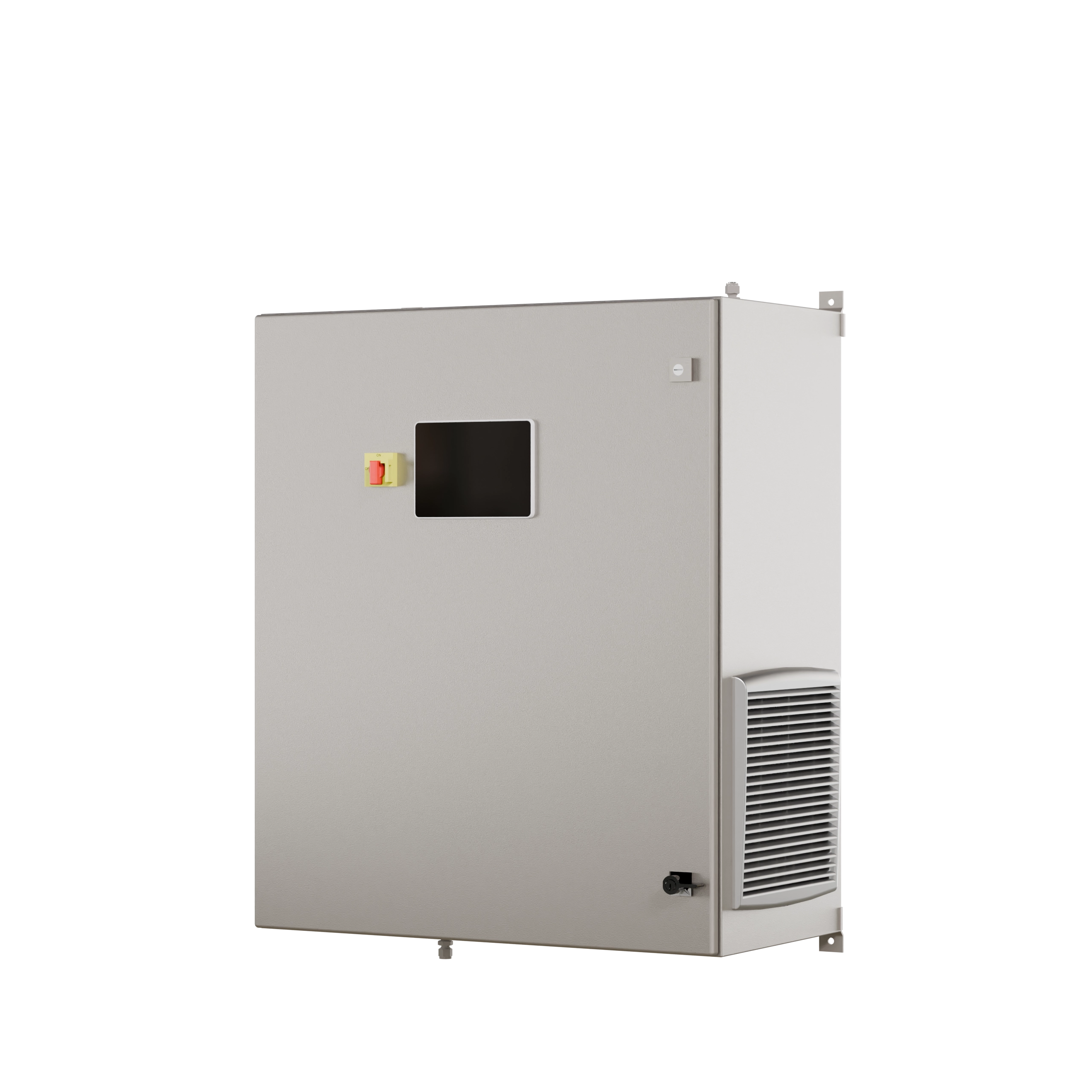

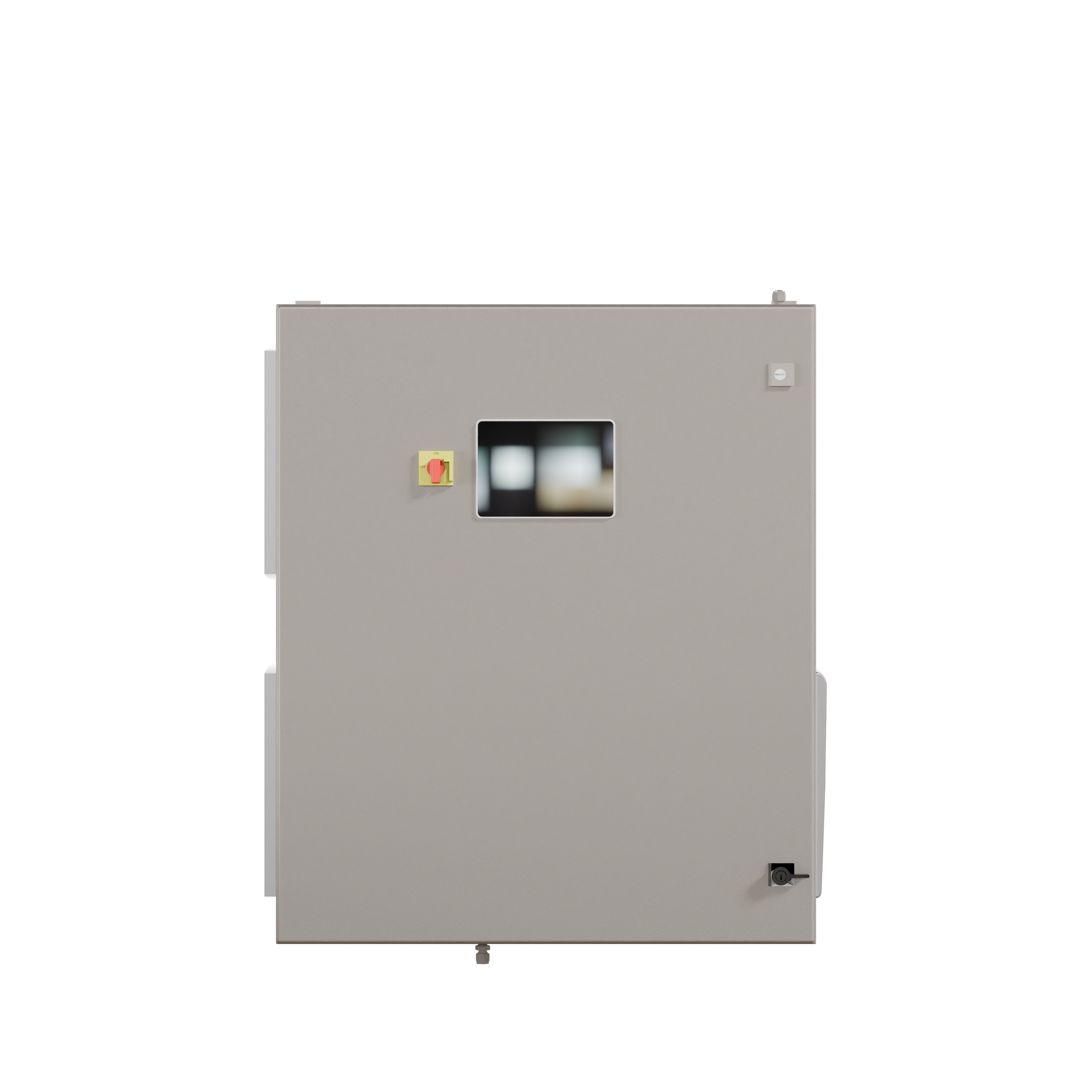

Physical Properties
Ozone Output
140 g/hr, Air Cooled
Dimensions (WxHxD)
32" x 46" x 17"
Weight
~240 lbs
Connections
Oxygen Feed
3/8" Tube
1, 5, or 10 LPM Gaseous Zones
1/4" Tube, 0-2 LPM Flowmeter per Zone
5,10 Remote Zones
1/4" Tube, 3/8" Tube from GTS to Remote Zone Distribution Box

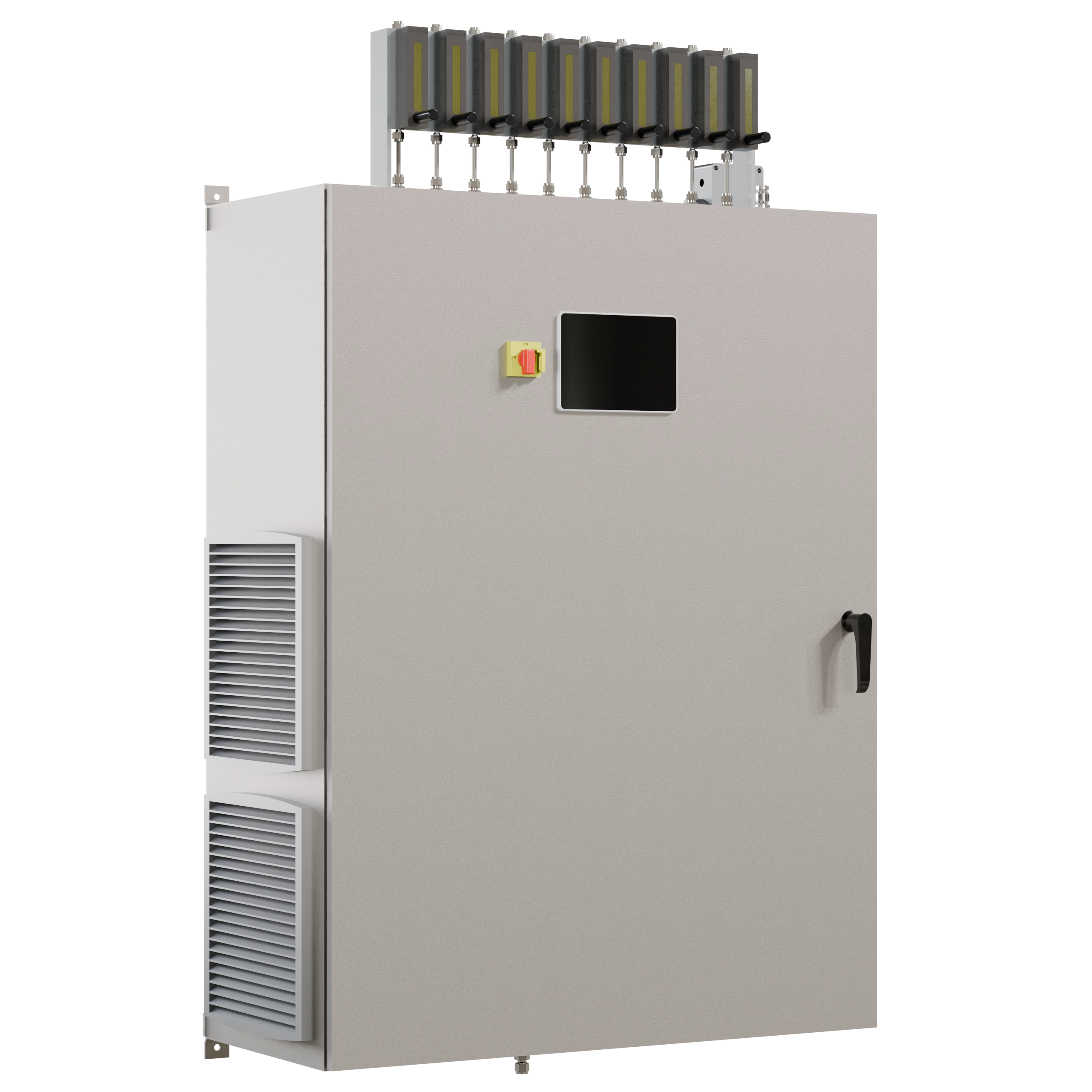

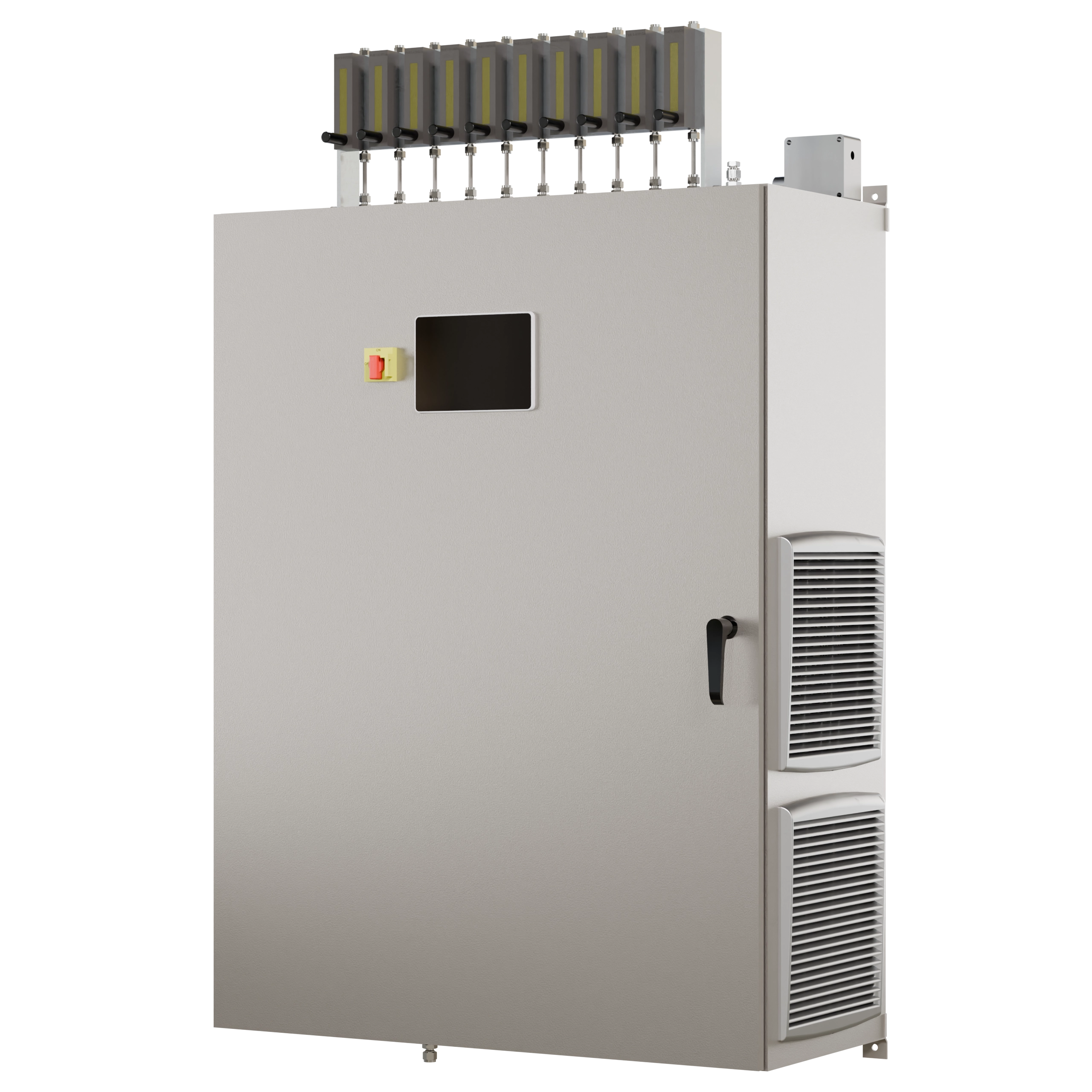

Physical Properties
Ozone Output
2 x 140 g/hr (280 g/hr), Air Cooled
Dimensions (WxHxD)
37" x 57" x 18"
Weight
~370 lbs
Connections
Oxygen Feed
3/8" Tube
1, 5, or 10 LPM Gaseous Zones
1/4" Tube, 0-2 LPM Flowmeter per Zone
5,10 Remote Zones
1/4" Tube, 3/8" Tube from GTS to Remote Zone Distribution Box
